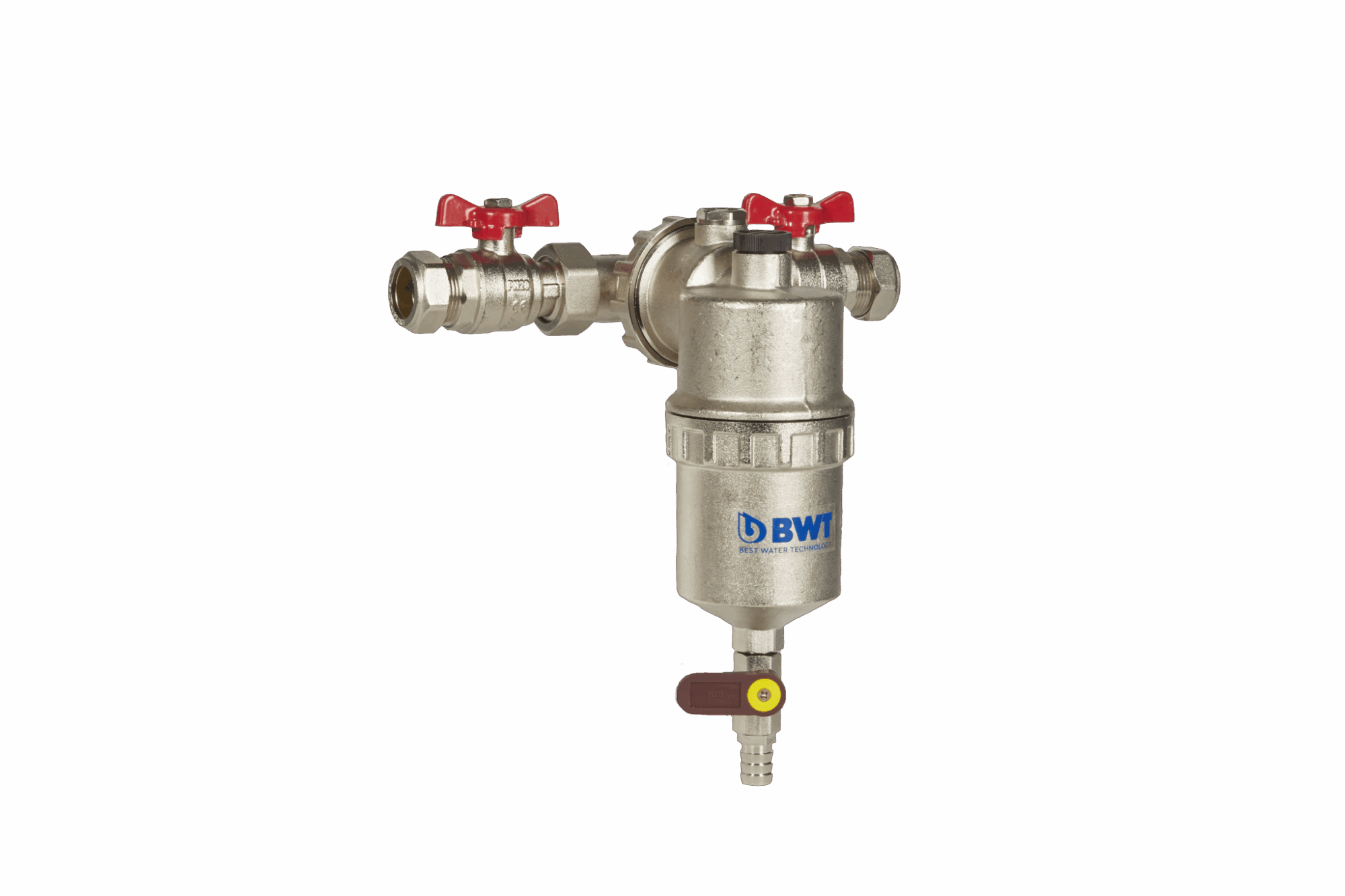

Silvermag Max - 22 valves
Silvermag Max - 22 valves
Silvermag Max - 22 valves
SilverMag Max - Image 8
Silvermag Max - 22 valves
Silvermag Max - 22 valves

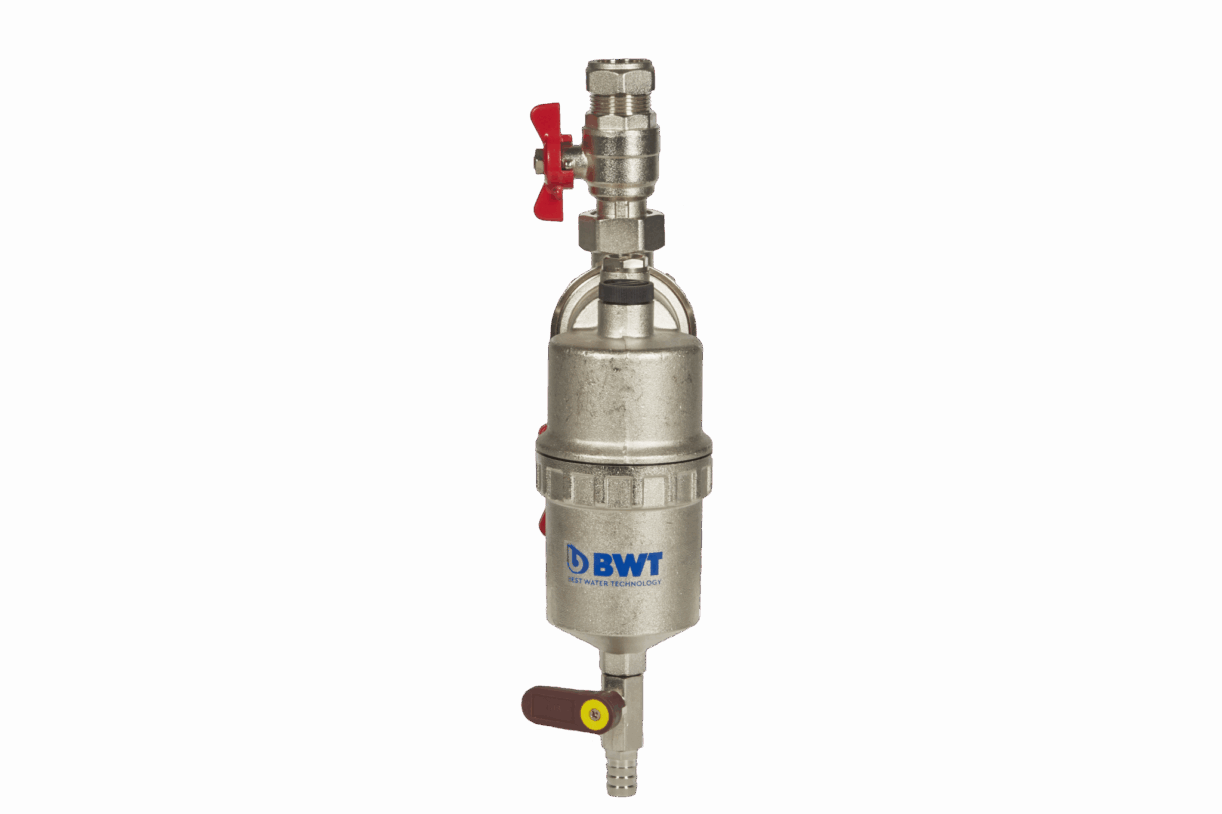

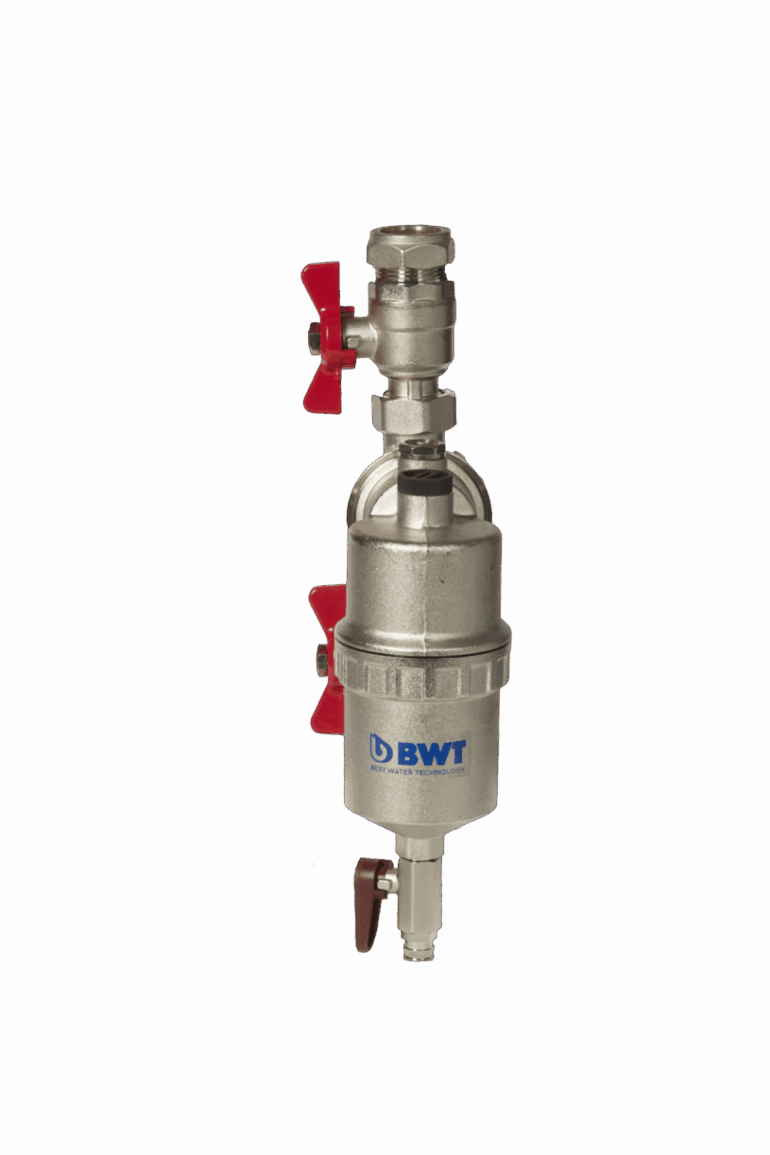

Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Silvermag Max - 28 valves
Category:

SilverMag Max

BWT SilverMag System Filter:

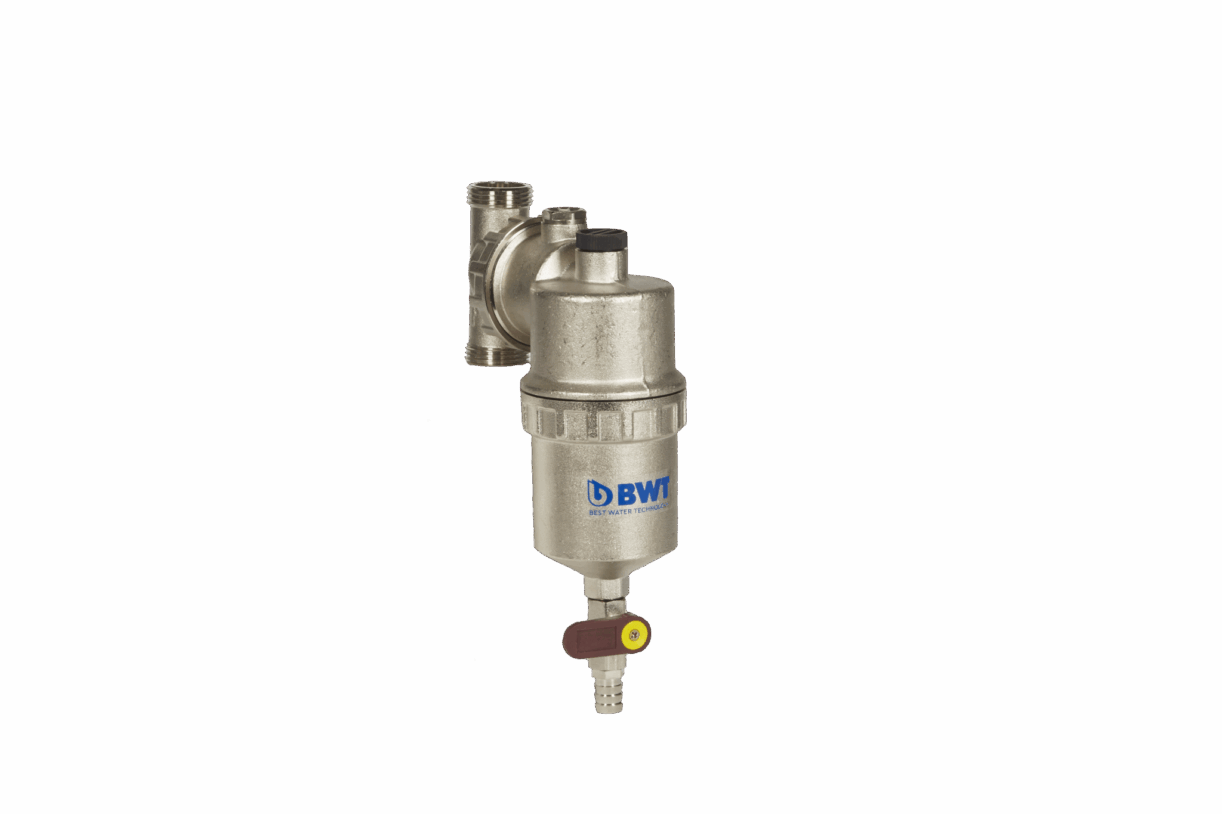

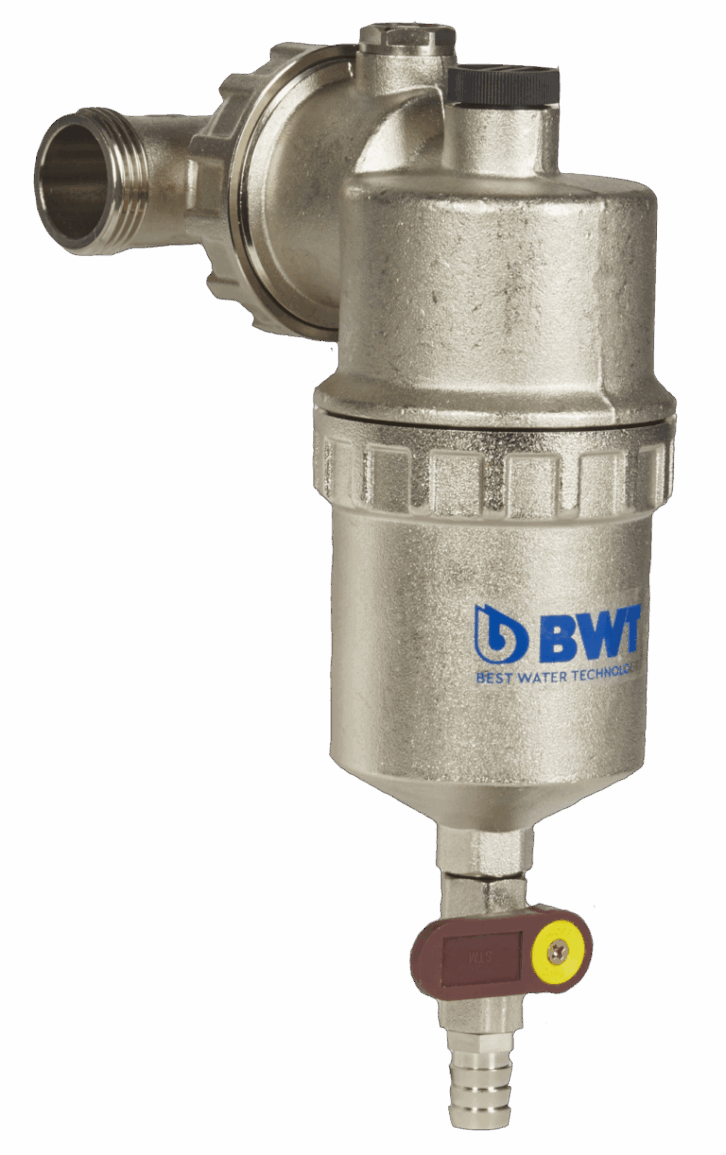

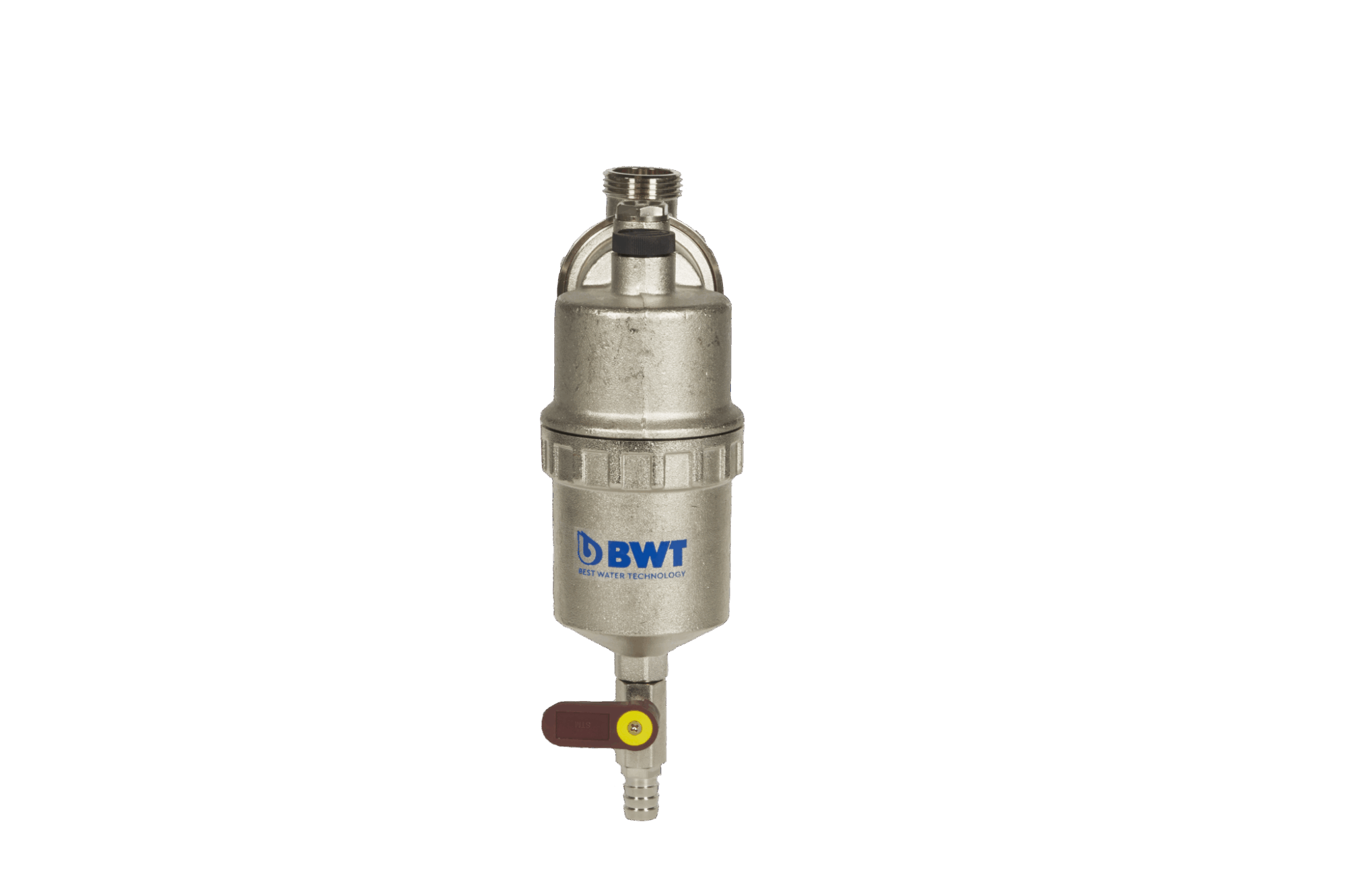

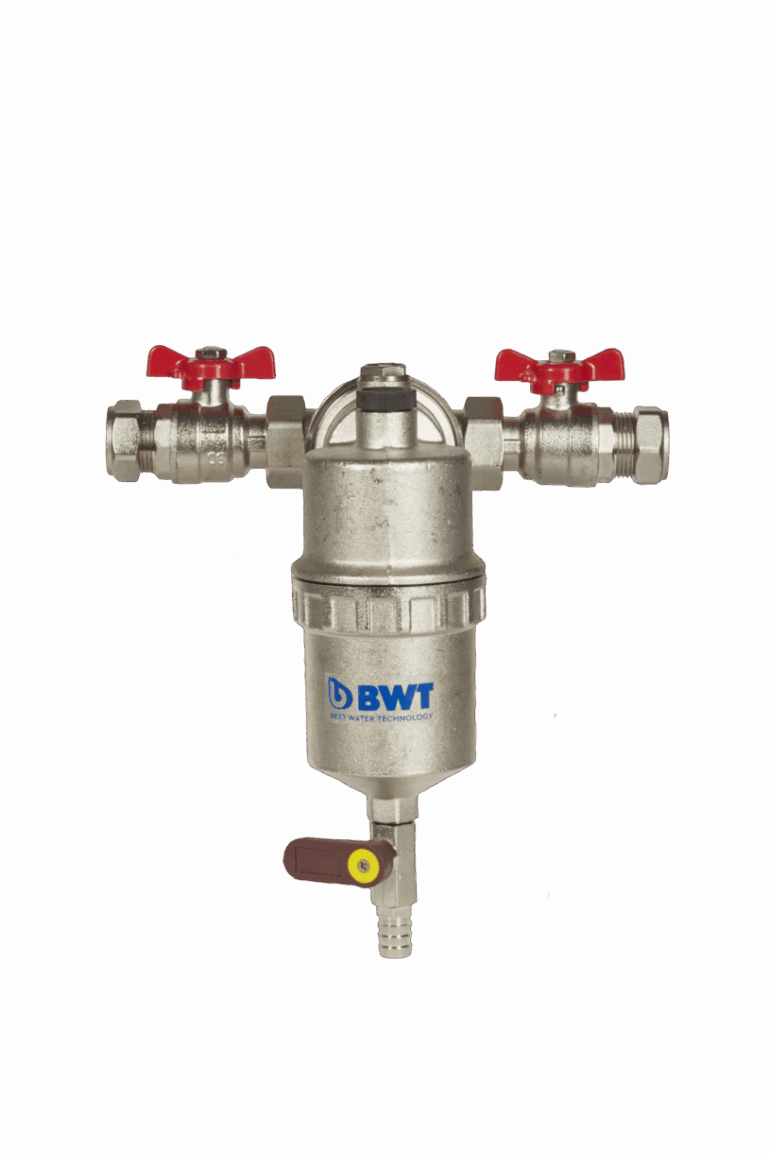

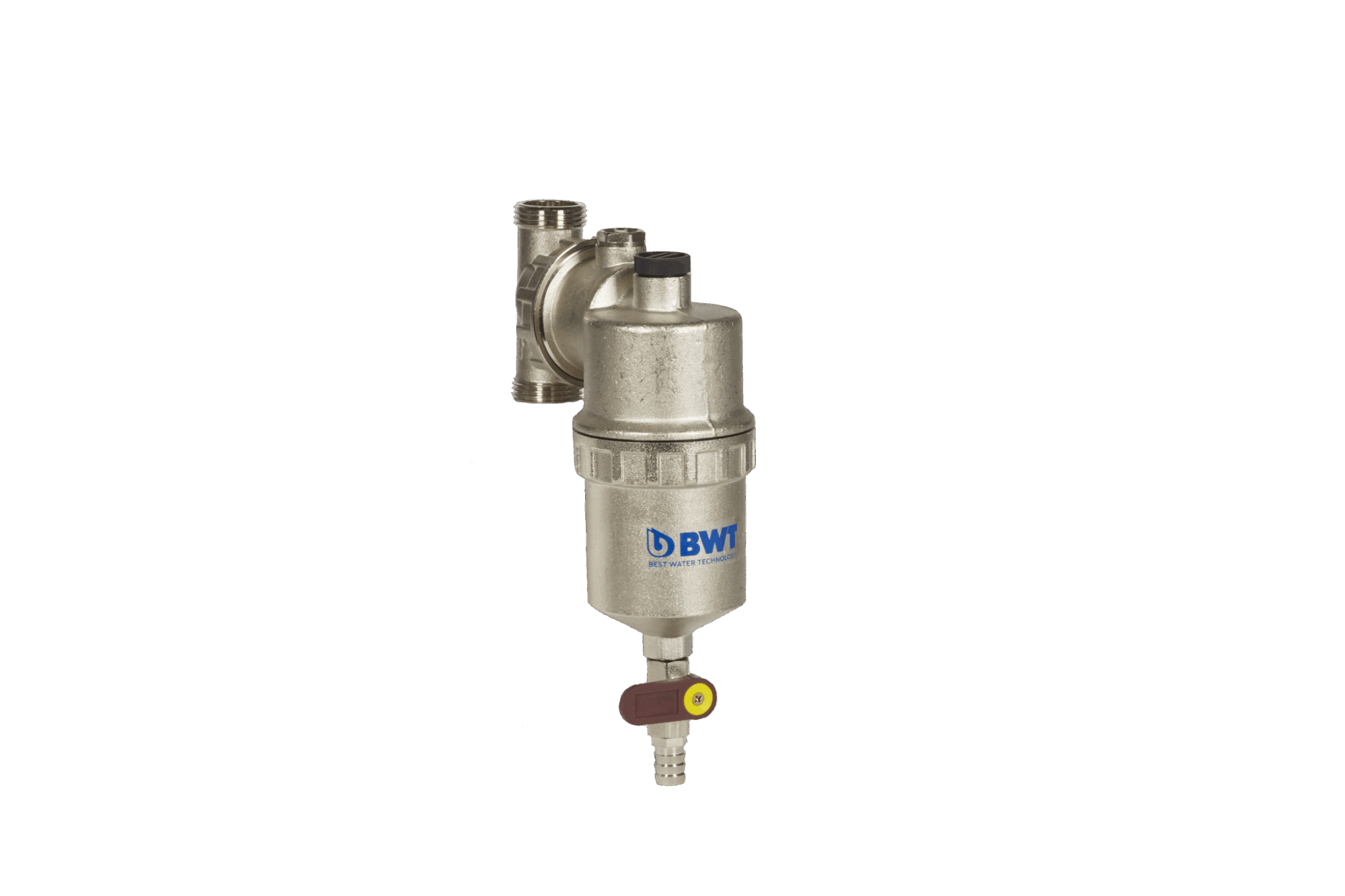

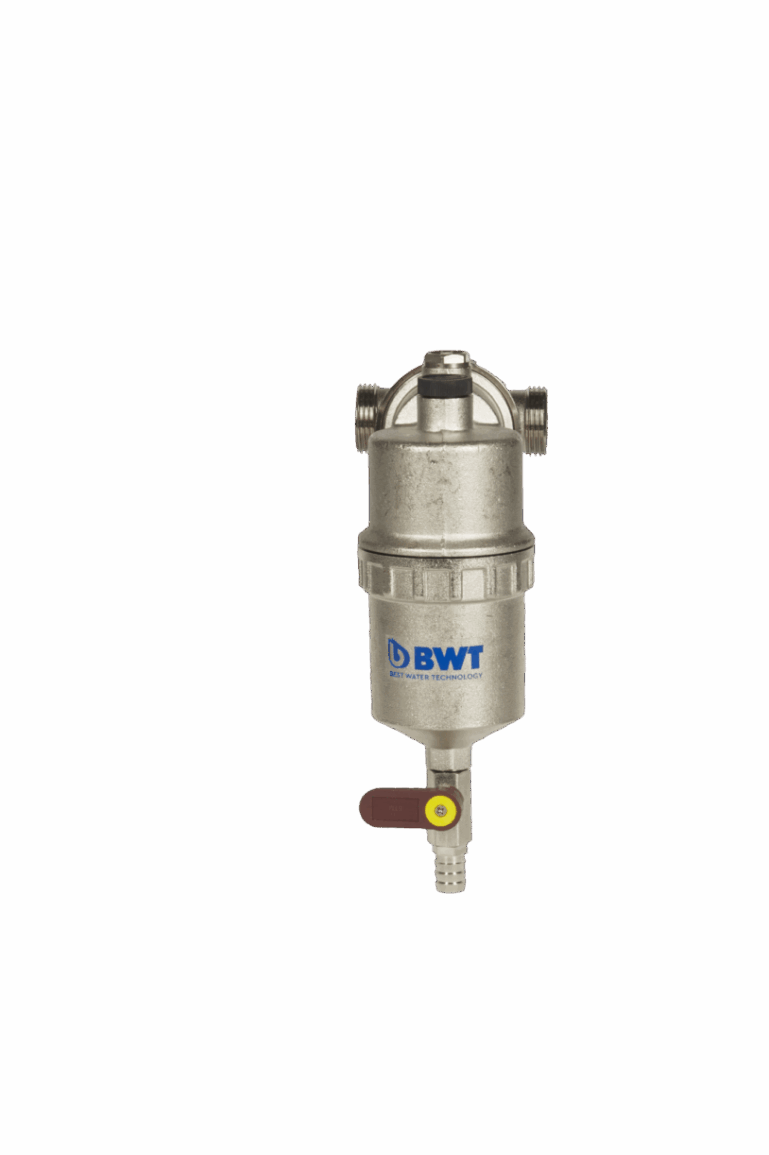

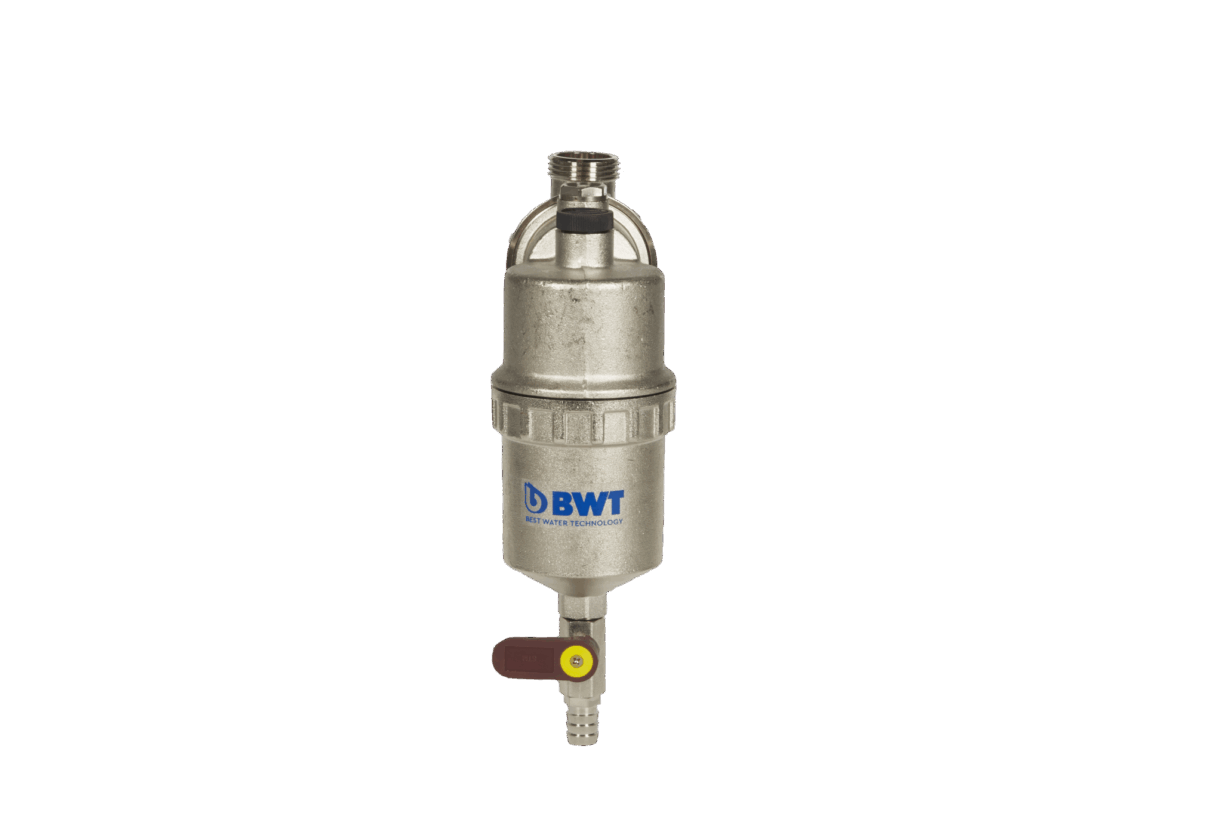

The BWT SILVERMAG MAX magnetic and particulate system filter is a nickel-plated brass filter used to protect piping systems from impurities and metallic particles. Its stainless-steel mesh traps larger particles, while its neodymium magnetic rod captures metallic debris, effectively protecting the generator (boiler or heat pump) and the HVAC circuit from damage caused by impurities. This ensures both the longevity of the equipment and the energy efficiency of the system. Its 1″ connection makes it compatible with floor-standing boilers and heat pumps. The 360° nut allows for both vertical and horizontal installation.

Key Features

  • 10-Year Guarantee: Built to last, giving you peace of mind.
  • Dual Protection: Keeps your system clean by stopping sludge buildup.
  • Compact Design: Easy to install with four different configuration options.
  • Simple Maintenance: Comes with a drain valve for easy cleaning.
  • Effective Filtration: Uses a metal filter sieve to trap dirt efficiently.
  • Protects Boiler: Helps extend the life of your heating system.
  • Energy Savings & Eco Friendly: Improves system efficiency, helping you save on energy bills.
Price range: £239.99 through £309.99

Designed and developed to protect all types of boilers, heating system components and heat pump.

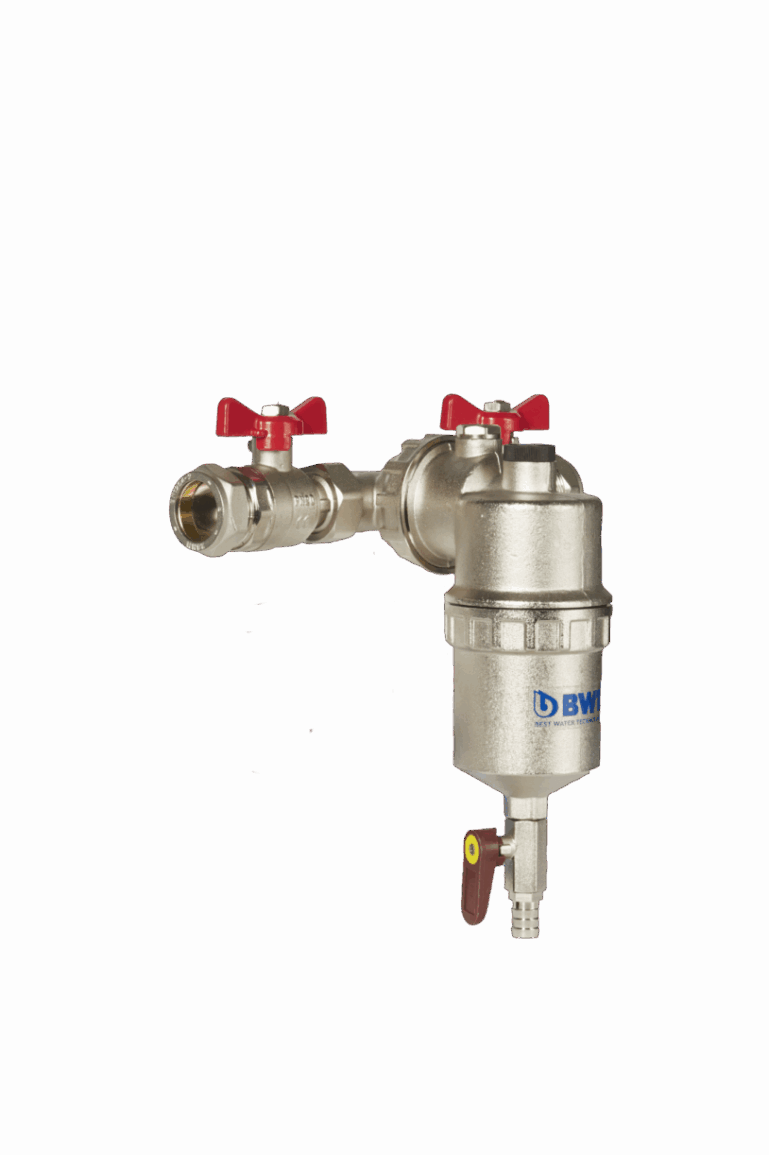

Versatile: The 360° nut allows for both vertical and horizontal installation.
Compatible:  Its 1″ connection makes it compatible with floor-standing boilers and heat pumps.

Efficient: patented baffle design

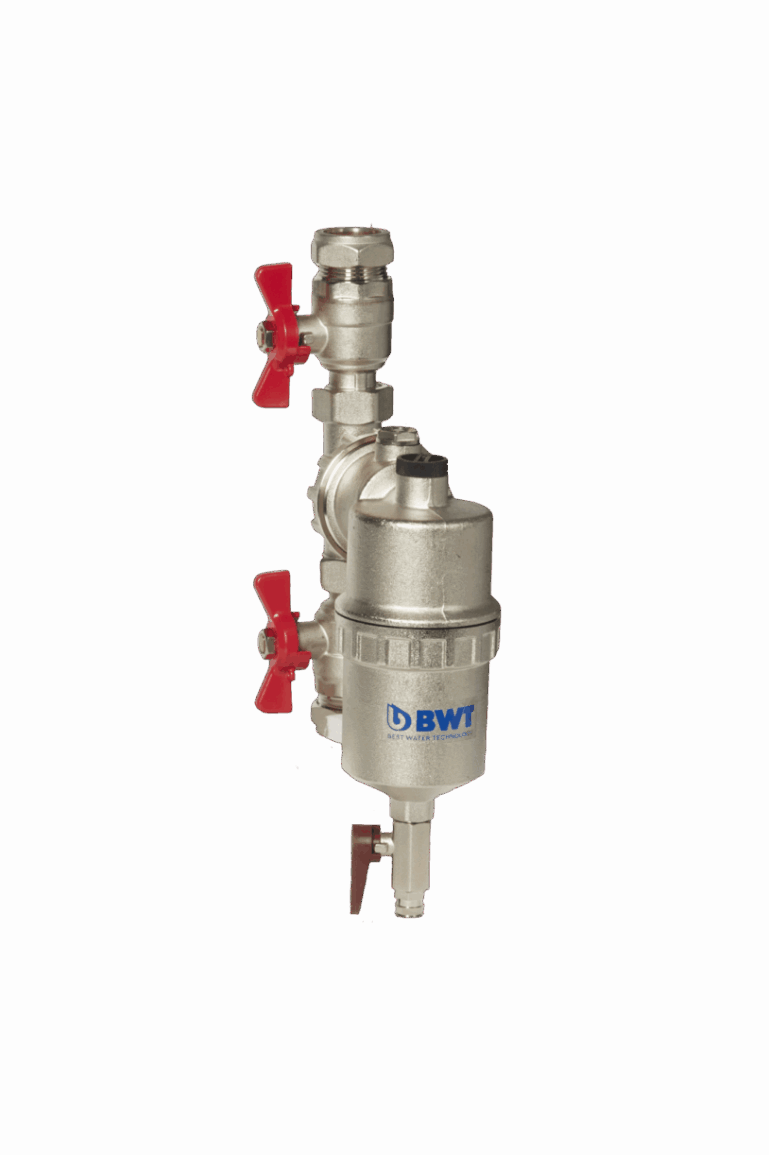

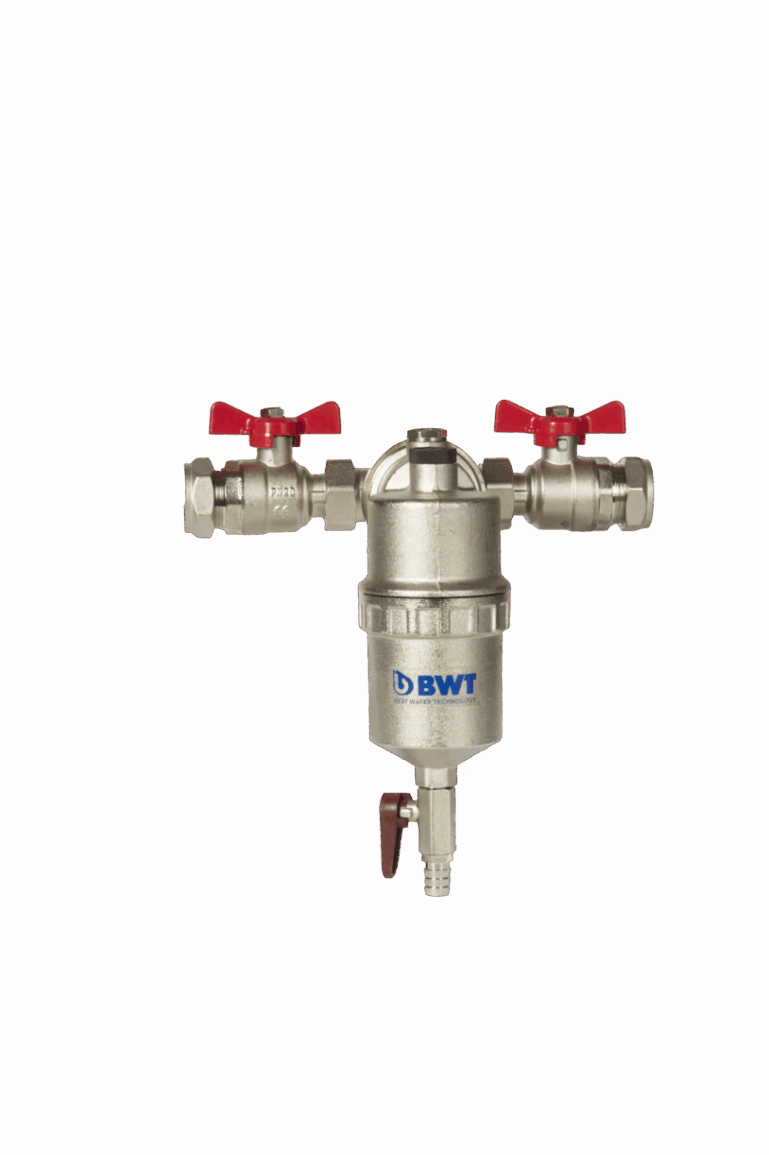

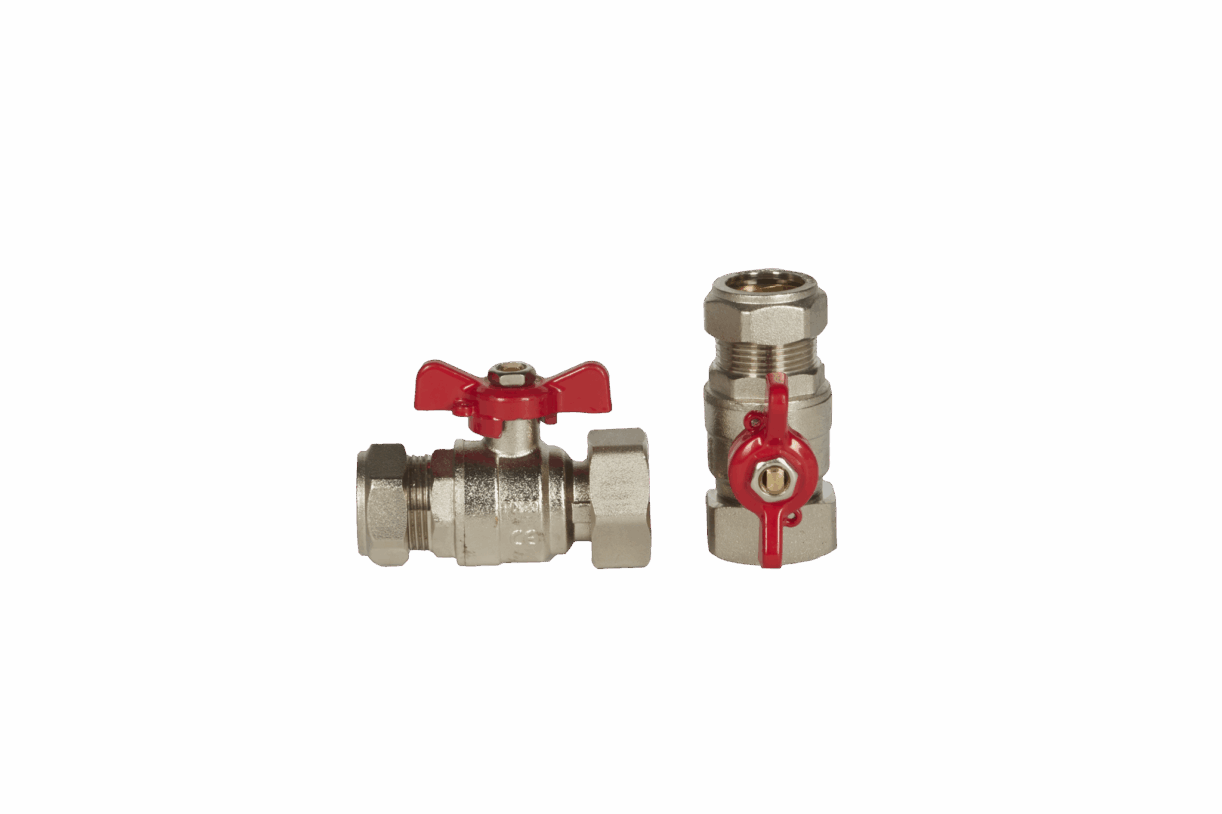

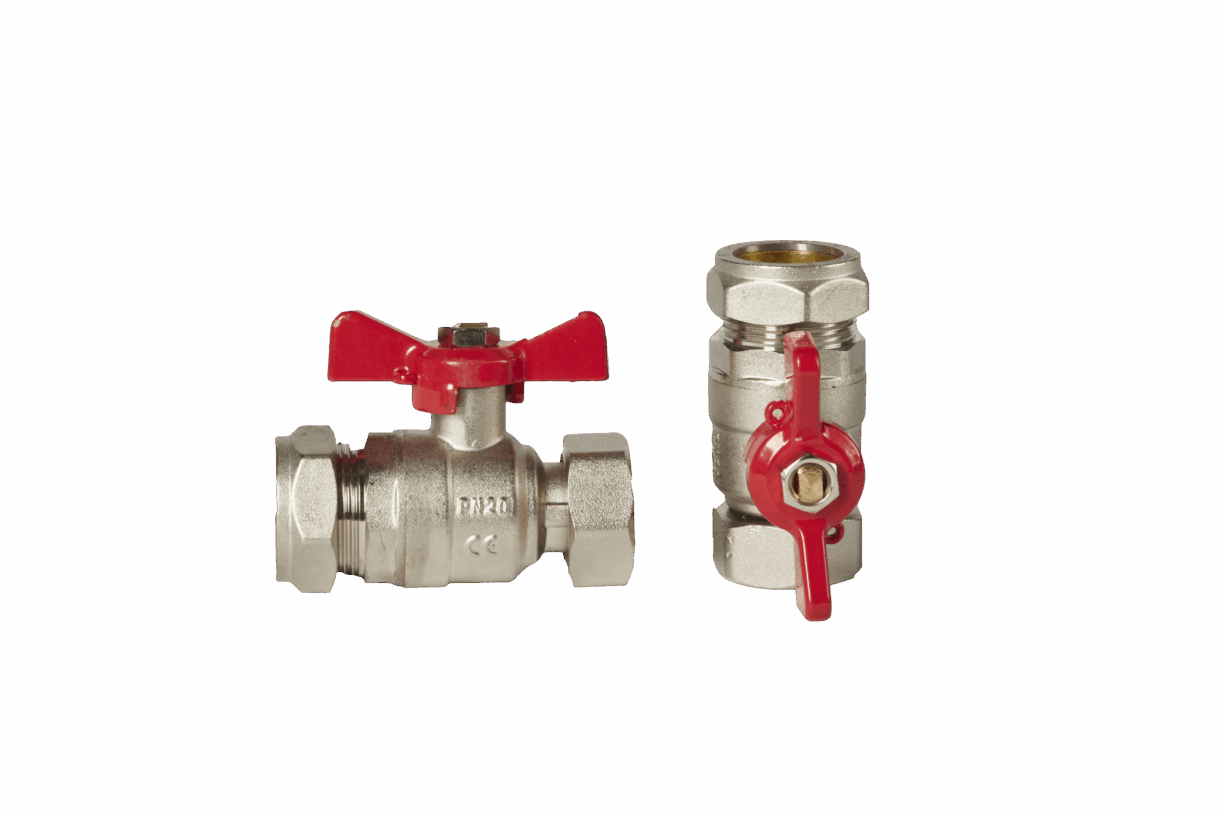

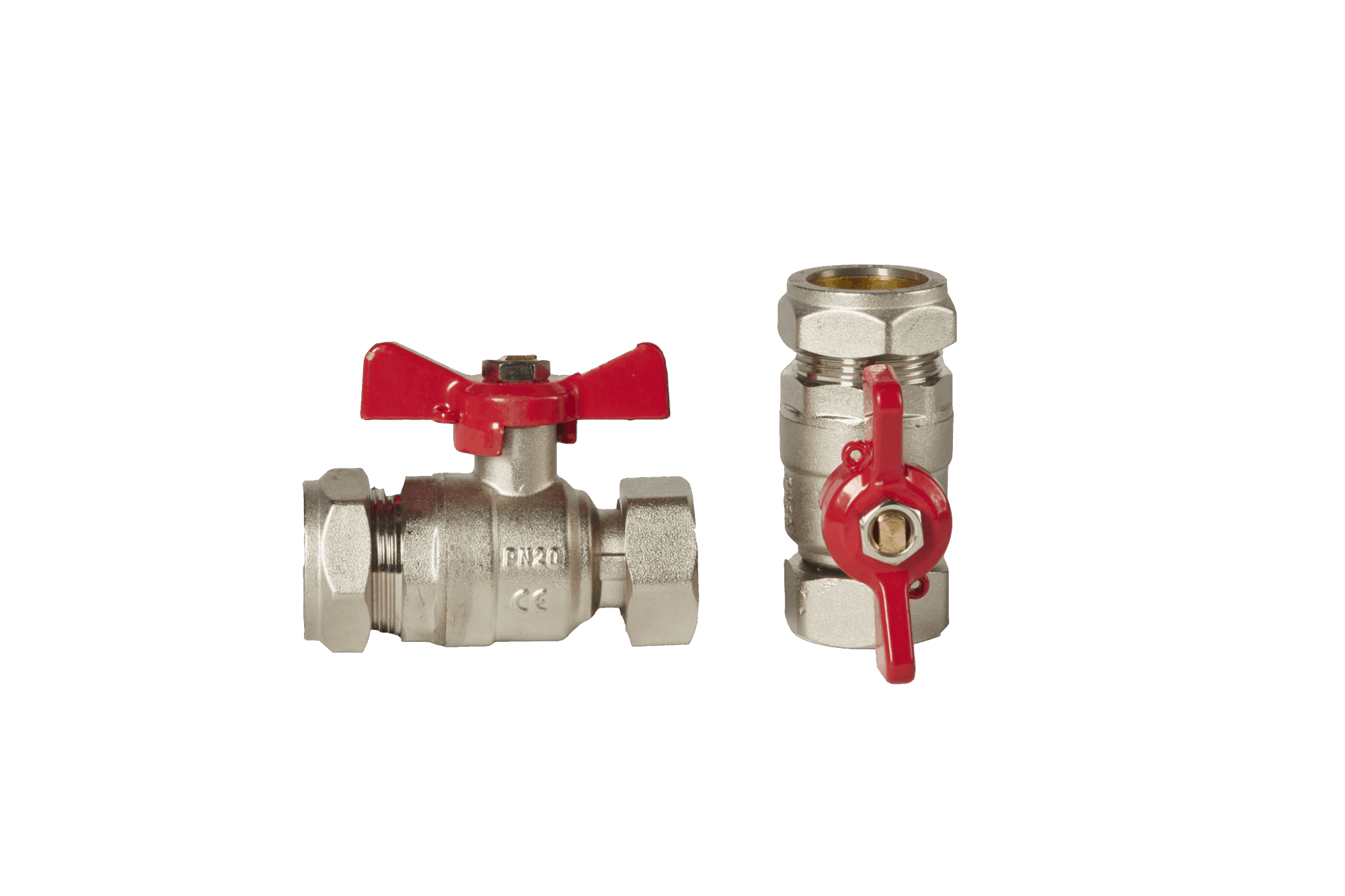

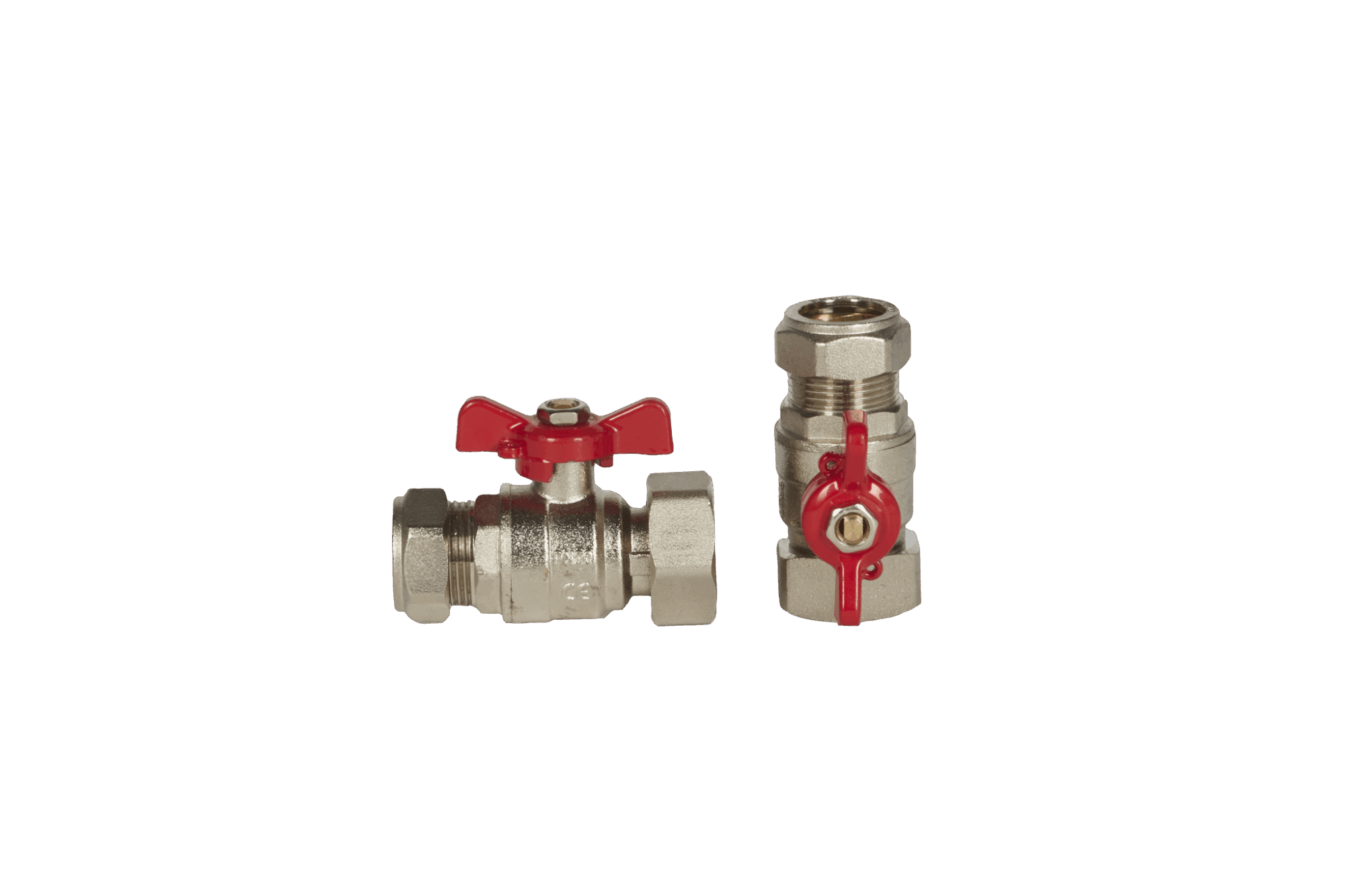

UK Standard Fittings:  1″ connection, and available with 22mm valves or 28mm valves.

Includes: drain valve and sealing plug.

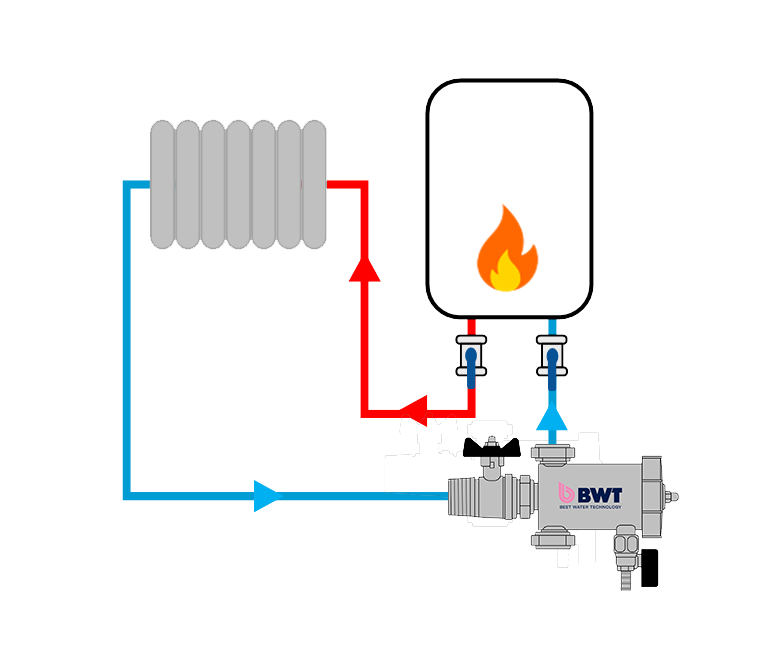

Silvermag schematic

The SilverMag is sold with a ten year manufacturing guarantee that guards against faulty workmanship or material providing it is installed in line with our recommendations and any local bylaws.

Additional information

Silvermag Max

Silvermag Max, Silvermag Max 22, Silvermag Max 28, Silvermag Max Pro, Silvermag Max Pro Plus

Components

  • Inlet/Outlet 1” male (nickel-plated brass)

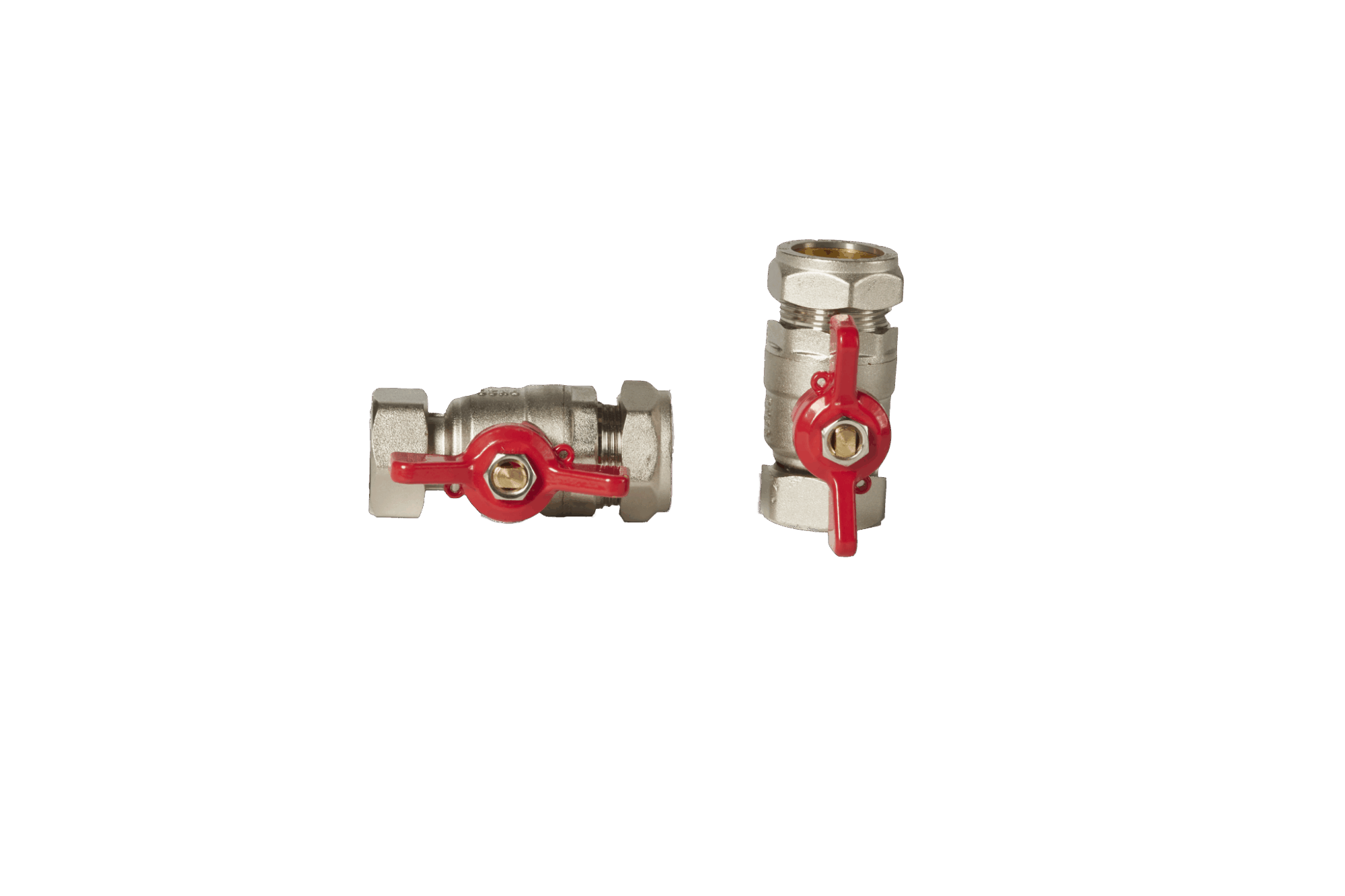

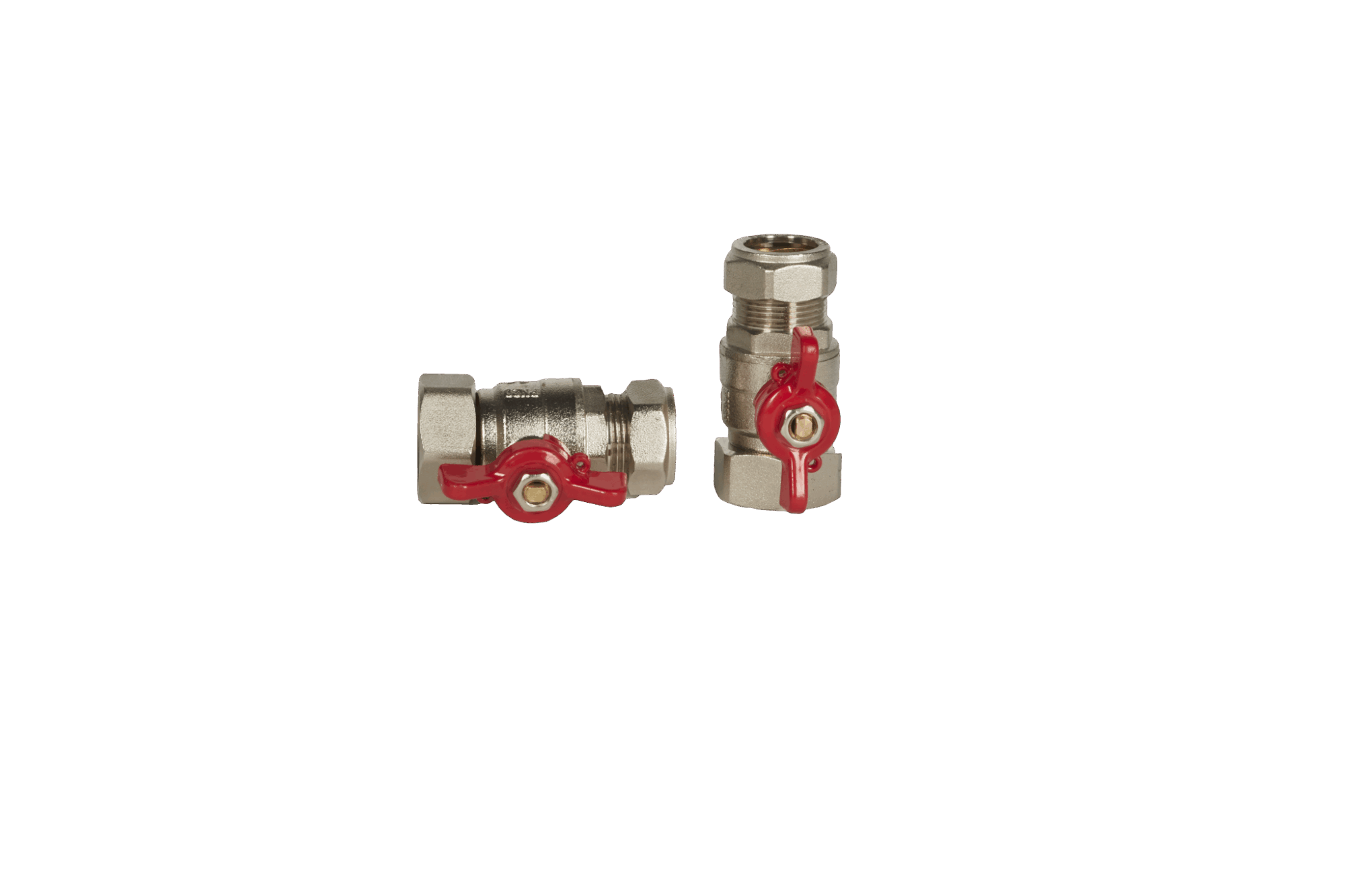

  • Connection for the 22 mm or 28 mm valves, that can be positioned either vertical or horizontal.

  • Drain valve (nickel-plated brass)

  • Magnetic rod (Neodymium magnet with a power of 12,000 Gauss)

  • 800-micron stainless steel filtration mesh

  • 360° rotated nut

  • Screw connection between the upper and lower sections

  • Sediment chamber

  • Air vent

Weight: 3 kg / Max pressure: 10 bar

Max temperature: 80°C / Max flow rate: 4 m³/h
