Luxury Water Softener – WS 155

Enjoy luxury softened water even in the smallest spaces with the WS 155. Perfect for homes of up to four people or compact commercial settings. Its ultra-compact design fits neatly into cupboards or utility rooms. Block salt option offers practical, economical operation. Supplied with a 15mm installation kit. The WS155 ideal for UK plumbing systems.

Key Features at a Glance

  • Space-saving design – Minimal footprint and low height

  • Digital control system – Maximises softened water availability

  • Predictive regeneration – for minimal water and salt usage

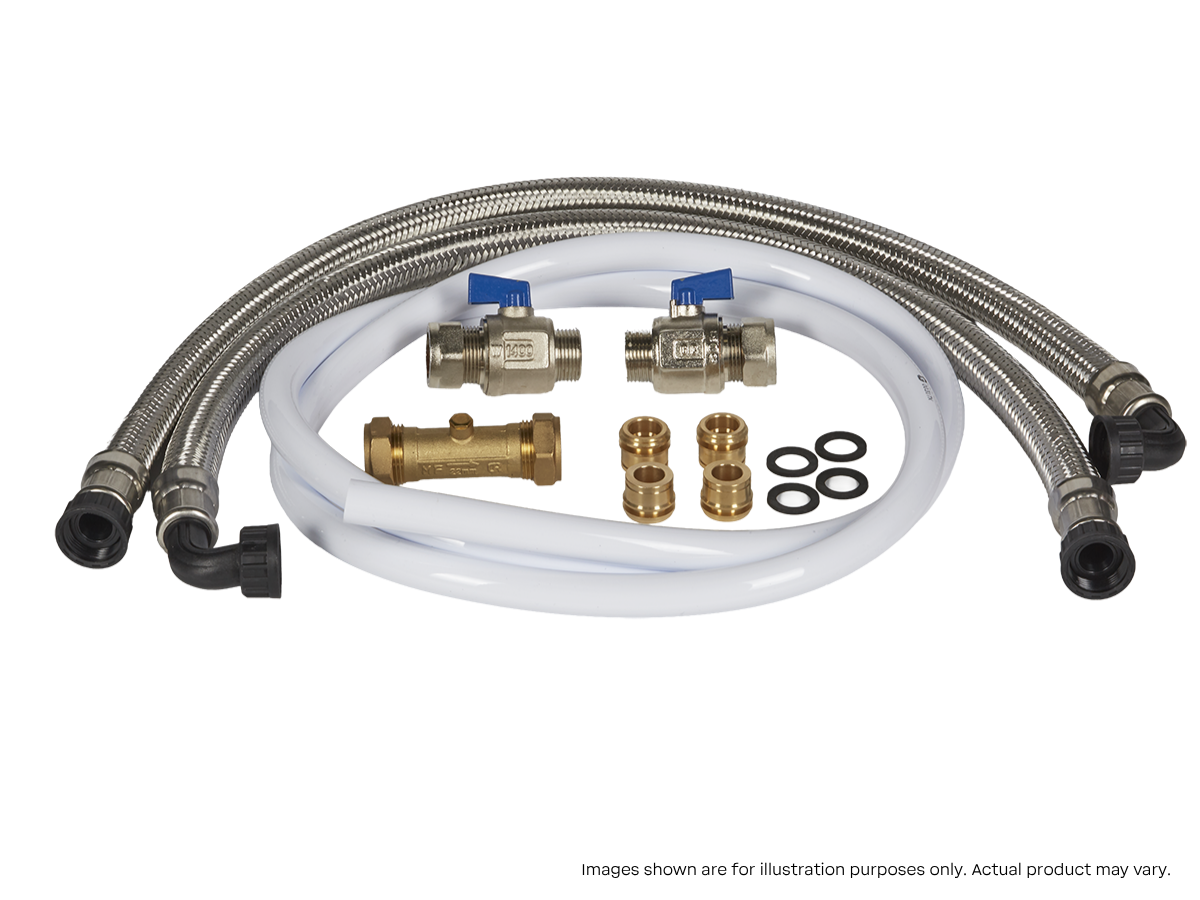

  • Flexible installation – Includes 15mm kit; high-flow hose available (extra cost)
  • Professional commissioning available – For perfect setup from day one

Call for Price

The WS 155 belongs to an exclusive collection of compact, high-performance water softeners—expertly engineered to complement UK homes and plumbing systems. Every model offers effortless installation and seamless integration, delivering the sophistication of Luxury Water with minimal disruption and maximum comfort.

Home Commissioning

Make sure your new Luxury Water Softener is perfectly tailored to you, your home, your lifestyle, and your local water conditions. Setup properly your Luxury Water Softener will automatically adapt to your typical water usage—giving you an abundant supply of silky-soft Luxury Water while helping to reduce water and salt consumption.

BWT’s @Home Commissioning is also a great chance to ask any questions you might have and get the most out of your new system.

Market Leading Warranty

Your WS 155 comes with a comprehensive @Home warranty 5 years on parts and 2 years on labour. In the unlikely event that your new softener develops a fault, there’s no need to worry about returning it to us. We’ll come to you! One of our fully trained engineers will get your favourite appliance back up and running in no time, at no cost to you.

And when your warranty ends, you can easily extend it for a small fee so you can continue enjoying all the benefits of Luxury Water, worry-free.

Additional information

Number of bathrooms

Number of people

,

BWT WS Water Softeners  Type WS 155
Nominal connection (outside thread) BSP ¾“ (DN 20)
Nominal flow rate in accordance with EN 14743 l/h 732
Operating pressure (min./max.) bar 1.0 / 8.0
Operating flow range (min./max.) l/min 10 / 30
Maximum flow rate * l/min 30
Quantity of ion-exchange resin l 4
Nominal capacity Litres 2500
Capacity salt reservoir kg 8
Salt consumption per regeneration kg 1.0
Water consumption per regeneration l 55
Protection class IP 51
Water temperature (min./max.) °C 5 / 30
Ambient temperature (min./max.) °C 5 / 40
Electrical connection V/Hz 230 / 50
Dimensions: Width x depth x height (W x D2 x H) mm 230 x 404 x 493
Connection height (A) / Overflow height (S) mm 376 / 250
Operating weight, approx. kg 30
Fitting Kit mm Standard: 15mm Valves and Hoses
*Tested with HiFlow connection – continuous operation at this level may affect softening efficiency

What is Hard Water?

Hard water is water that contains dissolved hardness minerals above 100 parts per million (PPM). Relative levels of hardness have been established as: Soft Water less than 100 PPM Slightly Hard 100 TO 200 PPM Hard 300 TO 400 PPM Very Hard 400 and above

How Does A Water Softener Work?

BWT water softeners work on the ion exchange principle. They work by passing the incoming water supply through the resin bed, that removes all excess minerals and impurities. As a result, the calcium and magnesium cling to the resin beads and are replaced by sodium ions. The resin bed can only capture a certain amount of minerals, and when this limit is reached, the system is regenerated by flushing it with a brine solution. This helps in the removal of calcium deposits and replenishes the resin with sodium ions. Therefore, with water softeners you can easily turn your hard water into softened water.

Can You Drink Softened Water?

There are no real reasons why you cannot drink softened water, for most people it is a matter of choice and lifestyle. However, for those that have installed a water softener, please be mindful that softened water does contain a slight increase in the amount of sodium, the actual amount of which will depend on your local water hardness and is therefore not recommended for people who are on a low sodium diet, for the preparation of baby formula milk, or for areas where the hardness exceeds 390ppm. Please also note in line with guidance an untreated water tap should be available within the property.

Can You Use Water Softener Salt in Dishwater?

Once you have installed a water softener in your home, it is unlikely that you will need to add extra salt in your dishwasher. Simply change your dishwasher’s internal water softener setting to the off position or alternatively ensure the incoming water hardness setting is at its lowest/softest.

How Much Time Does It Take To Install A Water Softener System?

The installation time will depend on where the water softener is going to be installed and the experience of the installer. Given a suitable location with easy access to the necessary services we would expect an experienced installer to allow 3-4 hours. Check out our video on our YouTube channel How to install a BWT Water Softener, where we have explained the installation process.

Are the BWT Water Softeners electric Powered?

The WS range softeners use a ‘Plug In’ type transformer. The low voltage system is used to power the electronic control system and the valve during regeneration. The result is a water softener that can be set up to suit your local water conditions and that can adapt to your lifestyle. The electricity used is minimal and the small diameter cable from the transformer can in most cases be easily routed from the socket to the softener.
